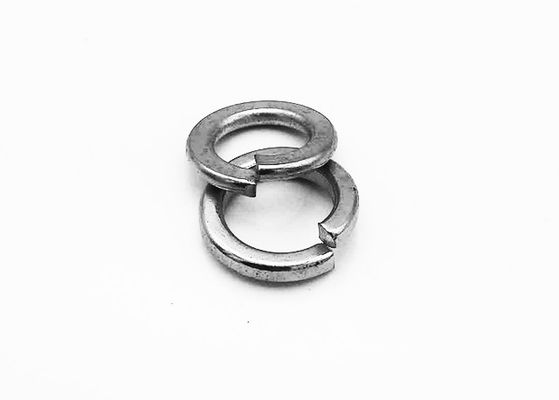

DIN 127 Zinc Plated M56 Steel Spring Washer

DIN 127 Zinc Plated M56 Steel Spring Washer

  • DIN 127 Zinc Plated M56 Steel Spring Washer
  • DIN 127 Zinc Plated M56 Steel Spring Washer
  • DIN 127 Zinc Plated M56 Steel Spring Washer
  • DIN 127 Zinc Plated M56 Steel Spring Washer
  • DIN 127 Zinc Plated M56 Steel Spring Washer
  • DIN 127 Zinc Plated M56 Steel Spring Washer
DIN 127 Zinc Plated M56 Steel Spring Washer
Product Details:
Place of Origin: CHINA
Payment & Shipping Terms:
Minimum Order Quantity: 1TONS
Price: 650-800
Packaging Details: packed in bags
Delivery Time: 7-15DAYS
Payment Terms: T/T
Supply Ability: One metric ton per day
Contact Now
Detailed Product Description
Material:: Iron Colour:: Plani Or Zinc Or Yellow
Grade:: 4.8 Or 8.8 Standard:: DIN
Model Number:: Standard
High Light:

M56 spring steel washer

,

M56 spring washer

Steel Spring Washer DIN127 Grade 4.8&8.8 With Black&Zinc&Yellow
Product Description
The role of the spring washer is tightened after the nut, the spring washer to the nut a stretch, close the nut, so that it is not easy to fall off. The basic role of the spring is to re-nut tighten to the nut after a force to increase the friction between the nut and bolt.
2, with the pad is generally not flat pad, (in addition to the protection of fasteners and mounting surface to consider when using flat pad and spring pad).
Welcome to visit our website and send us emails , inquirys and we will give you the response within 24hours. Please feel free to do that, we will give you best service and offer you lower price.

Specification

Size inside diamete Outside diameter width thickness height A thousand weight
M2 2.10 2.40 4.40 0.90 +-0.1 0.50 +-0.1 1.00 1.20 0.03
M2.2 2.30 2.60 4.80 1.00 +-0.1 0.60 +-0.1 1.20 1.40 0.05
M2.5 2.60 2.90 5.10 1.00 +-0.1 0.60 +-0.1 1.20 1.40 0.05
M3 3.10 3.40 6.20 1.30 +-0.1 0.80 +-0.1 1.60 1.80 0.11
M3.5 3.60 3.90 6.70 1.30 +-0.1 0.80 +-0.1 1.60 1.90 0.12
M4 4.10 4.40 7.60 1.50 +-0.1 0.90 +-0.1 1.80 2.10 0.18
M5 5.10 5.40 9.20 1.80 +-0.1 1.20 +-0.1 2.40 2.80 0.36
M6 6.10 6.50 11.80 2.50 +-0.15 1.60 +-0.1 3.20 3.80 0.83
M7 7.10 7.50 12.80 2.50 +-0.15 1.60 +-0.1 4.20 3.20 0.93
M8 8.10 8.50 14.80 3.00 +-0.15 2.00 +-0.1 4.00 4.70 1.60
M10 10.20 10.70 18.10 3.50 +-0.2 2.20 +-0.15 4.40 5.20 2.53
M12 12.20 12.70 21.10 4.00 +-0.2 2.50 +-0.15 5.00 5.90 3.83
M14 14.20 14.70 24.10 4.50 +-0.2 3.00 +-0.15 6.00 7.10 6.01
M16 16.20 17.00 27.40 5.00 +-0.2 3.50 +-0.2 7.00 8.30 8.91
M18 18.20 19.00 29.40 5.00 +-0.2 3.50 +-0.2 7.00 8.30 9.73
M20 20.20 21.20 33.60 6.00 +-0.2 4.00 +-0.2 8.00 9.40 15.20
M22 22.50 23.50 35.90 6.00 +-0.2 4.00 +-0.2 8.00 9.40 16.50
M24 24.50 25.50 40.00 7.00 +-0.25 5.00 +-0.2 10.00 11.80 26.20
M27 27.50 28.50 43.00 7.00 +-0.25 5.00 +-0.2 10.00 11.80 28.70
M30 30.50 31.70 48.20 8.00 +-0.25 6.00 +-0.2 12.00 14.20 44.30
M33 33.50 34.70 55.20 8.00 +-0.25 6.00 +-0.2 12.00 14.20 48.60
M36 36.50 37.70 58.20 10.00 +-0.25 6.00 +-0.2 12.00 14.20 57.80
M39 39.50 40.70 61.20 10.00 +-0.25 6.00 +-0.2 12.00 14.20 71.70
M42 42.50 43.70 68.20 12.00 +-0.25 7.00 +-0.25 14.00 16.50 111.00
M45 45.50 46.70 71.20 12.00 +-0.25 7.00 +-0.25 14.00 16.50 117.00
M48 49.00 50.50 75.00 12.00 +-0.25 7.00 +-0.25 14.00 16.50 123.00
M52 53.00 54.50 83.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 182.00
M56 57.00 58.50 87.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 193.00
M60 61.00 62.50 91.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 203.00
M64 65.00 66.50 95.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 218.00
M68 69.00 70.50 99.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 228.00
M72 73.00 74.50 103.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 240.00
M80 81.00 82.50 111.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 262.00
M90 91.00 92.50 121.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 290.00
M100 101.00 102.50 131.00 14.00 +-0.25 8.00 +-0.25 16.00 18.90 318.00

M3-M56 Size Steel Spring Washer DIN127 With Zinc Plated Black Yellow Color



Packing & Delivery
Packing Details : Bags or box on pallets or according to customer's requirement.
Delivery Details : 7-15 days after order
