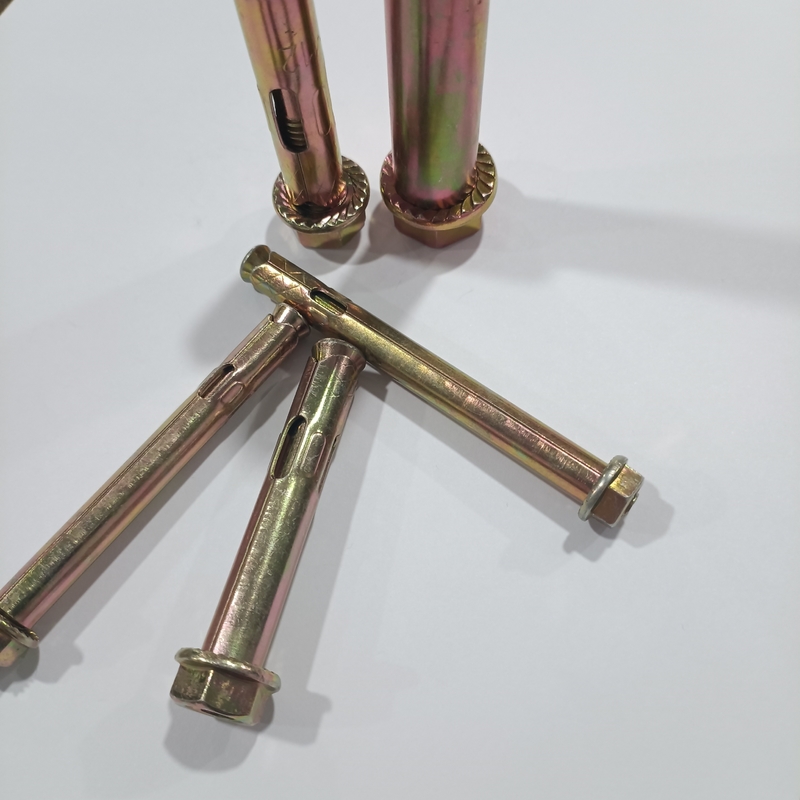

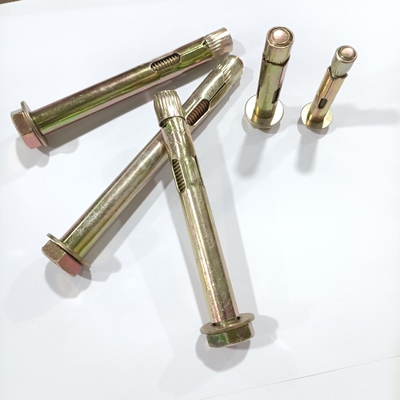

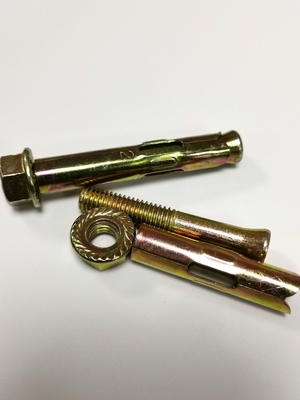

Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete

Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete

Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete
Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete
Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete
Product Details:
Place of Origin: China
Brand Name: Yuetong
Certification: 0350418Q30771R0S
Model Number: DIN
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: 0.1-0.2USD/PCS
Packaging Details: 25kg/carton or bag on the pallet or as customer's requirement
Delivery Time: 20-30 Days
Payment Terms: L/C, D/P
Supply Ability: 100 TON per week
Contact Now
Detailed Product Description
Diameter: M8-M20 Type: Sleeve Anchor
Material: Steel Standard: DIN
Length: 40-300MM Material Sources: Carbon Steel
Grade: Grade 4.8/8.8/10.9 Surface Treatment: YZP Etc,galvanized
Application: Building Construction Color: Yellow
Packing: Small Box /bulk Paced(25 Kg) Sample: Free Sample Can Be Sent For Test
High Light:

grade 4.8 anchor bolt sleeve type

,

carbon steel anchor bolt sleeve type

Grade 4.8 /8.8 Carbon Steel Flange Nut Head Sleeve Anchor Bolts M12*30 Concrete

Product Introduction

Purpose and characteristics
☑ Fasten air conditioners, water heaters, range hoods, etc;
☑ Fixed frameless balcony windows, anti-theft doors and windows, kitchen, bathroom components, etc;
☑ Fixation of ceiling screw rod (combined with casing and cone cap);
☑ Fix wooden and marble staircase handrails, curtain walls, brackets, etc.
Materials and craftsmanship
◇ Cone head screw: Q215 plain carbon wire pier system;
◇ Pipe body: Low carbon steel coil longitudinal shear, formed by continuous die punching, mostly Taiwanese style long hole pipes;
◇ Flange nut: made of plain carbon steel through cold forging, with a tapered part with a stop rotation straight line Leishi; (or optional hexagonal nut with flat washer)
◇ Surface treatment: electro galvanized or other.
Tensile testing and allowable tensile force
Correctly installed on C30 concrete blocks, the failure limit value shall not be less than the allowable load of screws of the same specification.
For example, for the M10 series, it is recommended that the allowable tensile force: the allowable tensile load for a single vertical design is<6000N.

Place of Origin
Hebei, China
Brand Name
Yuetong
Material
Carbon Steel
Product name
Sleeve Anchor With Hex Flange
Size
Customers' Request
Application
Industrial Equipment
Surface treatment
Yellow Zinc Plated
Finish
Bright(Uncoated), Longer Life TiCN
Packing
Small Box+Carton+Pallet
Standard
DIN
Keyword
Sleeve Anchor





Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete 0

Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete 1

Grade 4.8 / 8.8 Anchor Bolt Sleeve Type Carbon Steel Flange Nut Head M12*30 Concrete 2



SERIVCE

1. Good after-dales service, Any samall problems will be solved at the prompt time.

2. Many years of export experiences.

3. Specification list is avaliable upon your request.

4. Welcome to send requry, we will reply soon.

5. Prompt shipment with professional documents.

6. Custom packing with photo bafore shipment.

7. High quality and competitive price.



COMPANY INTRODUCTION

HEBEI YUETONG FASTENERS MANUFACTURING CO.,LTD is located in China's largest fasteners production base---Yongnian fasteners centre.

Our factory was founded in 1991.We have several sets of advanced equipments, adopt advanced modern management and use high quality steel to produce high quality products. The products sold throughout the domestic and exported to Southeast Asia and Europe and other countries and regions. Our products win good reputation with domestic and foreign customers.

Our factory mainly produces: all kinds of flat washers, spring washers, expansion screws, hex nuts, flange nuts, hex bolts, flange bolts, sleeve anchor, fundation bolts, and thread robs with DIN, BSW, ANIS,MS.And we also provide the OEM, Meanwhile, we are manufacturing factory, so we can give you the best quality and the good price.



PACKING & DELIVERY

1. Packing Details: Boxex on pallets; As customer's requirements.

2. Delivery Dtetails: 25 days after order.



FAQ

Q: Are you trading company or manufacturer?

A: We are manufacturer and a trading company, which produces a portion by itself and a cooperative OEM factory produces a portion.



Q: How long is your delivery time?

A: Denerally it is 5-10days if the goods are in stock, or it is 15-25days if the goods need be produced, it is according to quantity you want.



Q: What is your terms of payment?

A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
