| Place of Origin: | Hebei,China(Mainland) |
| Model Number: | M6-M24 |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Box and Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000PCS PER DAY |
| Brand Name: | QIANBANG | Material: | Iron |
|---|---|---|---|
| Color: | Blue & White | Standard: | DIN BSW ANIS |
| Grade: | 4.8 8.8 12.9 | Size: | M6-M24 |
| High Light: | expanding anchor bolts,expansion type anchor bolts |
||

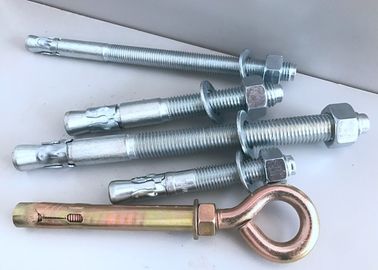

Expansion Anchor Bolt Wedge Anchors Of 4.8 Grade With Blue & White Zinc Plated Used Fasteners
Products Description
The wedge anchor bolts, concrete cavity depth and no higher cleanliness requirements, easy to install and inexpensive. Jacking by selecting the appropriate thickness of the buried depth, with the increase of buried depth, tension increased after the products are reliable and expandable functionality. Body material: stainless steel, carbon steel and other metal materials. Also known as through bolts, expansion bolts and expansion anchors, which is designed for consistent performance in concrete.
There has three kinds of wedge anchors: fully threaded, partial threaded and the full-bodied wedge anchor. Wedge anchor can be hammered below the surface of the concrete while no longer needed. Anchor diameter equals drill hole size. The expansion clip is formed around anchor, providing full expansion for dependable,superior supporting power. Expanding clip will not fall off or twist in the hole. Each wedge anchor has a minimum embedment requirement. The anchor diameteris the same as the drill hole size.
Specification
|
Size |
Amount in one box |
Weight(g) |
|
M6*50 |
2400 |
13.8 |
|
M6*80 |
1600 |
16.4 |
|
M6*120 |
1200 |
23.2 |
|
M8*50 |
1200 |
22.7 |
|
M8*75 |
800 |
30.51 |
|
M8*100 |
720 |
37.96 |
|
M8*150 |
480 |
53 |
|
M10*60 |
640 |
44.1 |
|
M10*75 |
560 |
50.6 |
|
M10*90 |
480 |
57.7 |
|
M10*100 |
440 |
62.33 |
|
M10*120 |
424 |
66.8 |
|
M10*130 |
384 |
76.04 |
|
M10*150 |
320 |
85.1 |
|
M12*75 |
420 |
71 |
|
M12*100 |
320 |
90.58 |
|
M12*120 |
288 |
105.35 |
|
M12*140 |
240 |
119.35 |
|
M12*160 |
200 |
133.5 |
|
M12*200 |
160 |
161.35 |
|
M16*100 |
200 |
165.16 |
|
M16*120 |
160 |
191.06 |
|
M16*140 |
120 |
213.36 |
|
M16*300 |
48 |
414.38 |
|
M20*140 |
88 |
355.56 |
|
M20*160 |
80 |
394.62 |
|
M20*200 |
60 |
477.56 |
|
M20*220 |
60 |
512.58 |
|
M20*260 |
40 |
589.78 |
Packing & Delivery
1. Packing Details: Boxex on pallets; As customer's requirements.
2. Delivery Dtetails: 25 days after order.
