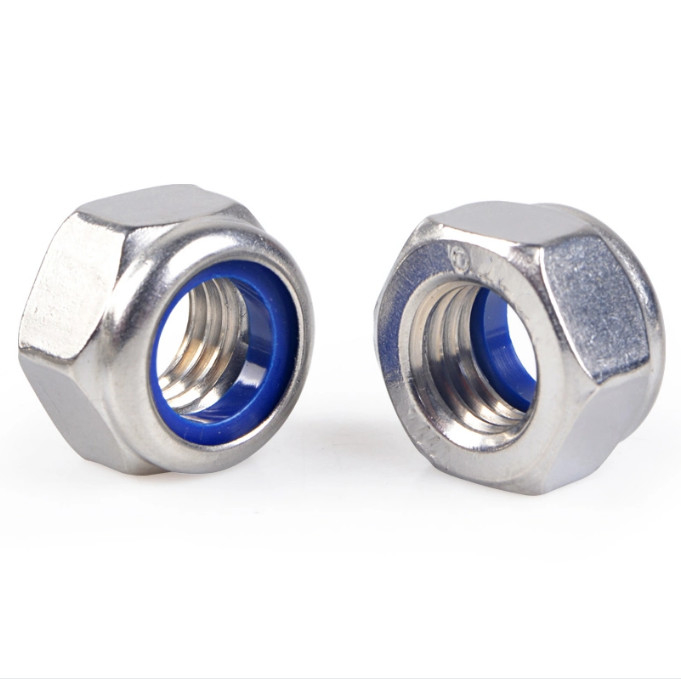

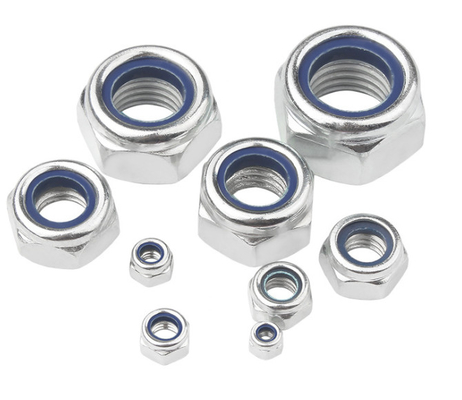

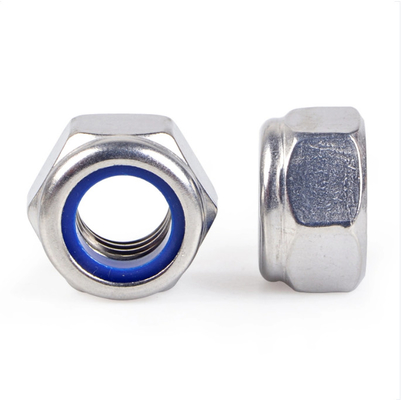

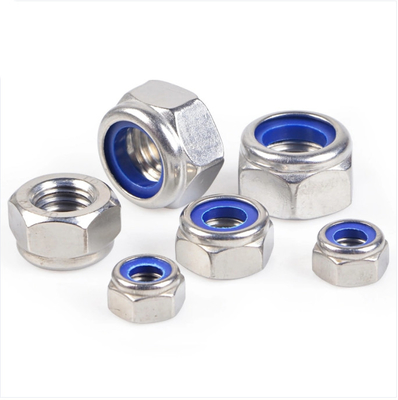

Din 982 Anti Theft Nut Galvanized Steel Insert Nylon Lock Antilose

Din 982 Anti Theft Nut Galvanized Steel Insert Nylon Lock Antilose

Din 982 Anti Theft Nut Galvanized Steel Insert Nylon Lock Antilose
Din 982 Anti Theft Nut Galvanized Steel Insert Nylon Lock Antilose
Din 982 Anti Theft Nut Galvanized Steel Insert Nylon Lock Antilose
Product Details:
Place of Origin: hebei, China
Brand Name: yuetong
Model Number: m5-M36
Payment & Shipping Terms:
Minimum Order Quantity: 500KG EACH SIZE
Price: 900 dollars
Packaging Details: carton/ bag+pallets
Delivery Time: 10-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000000tons each month
Contact Now
Detailed Product Description
Standard: DIN,GB,ISO,ANSI,JIS Material: Stainless Steel,carbon Steel
Size: Per Customer's Requirement. Product Name: Nylon Insert Lock Nut DIN982
Surface Treatment: Plain,galvanized Grade: 10.9,8.8,4.8,AISI 8,A
Color: Natural,Metal,Customized,Yellow,As Your Request Packing: Carton Box + Kraft Box
Sample: Free Sample Available
High Light:

din 982 anti theft nut

,

antilose anti theft nut







Product
Nylon Lock Nut,Nylon Insert Flange Lock Nut
Standard
ASTM / ANSI / ISO/DIN
Material
Carbon Steel, Stainless Steel, Alloy Steel
Mark
DX or According to customer's requirement
Delivery time:
Normally in 15-30 days.
Package
Cartons&pallets or according to customer's requirement.

Carbon Steel DIN 982 DIN 985 DIN6926 Insert White Blue Ring Nylon Lock Nut

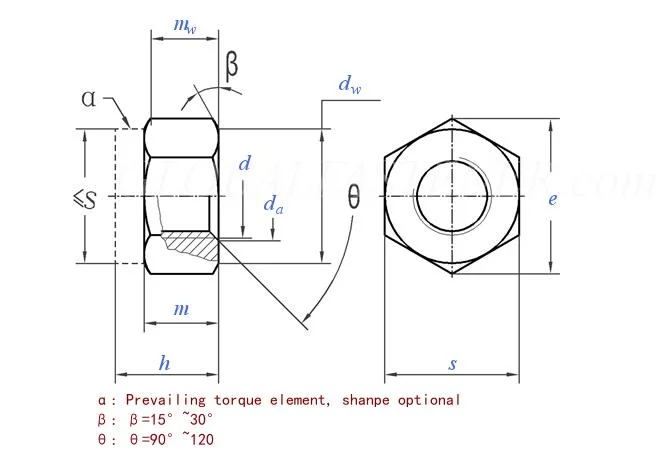

Thread Size
d
M3 M4 M5 M6 (M7) M8 M10 M12 (M14) M16 (M18)
P Pitch Coarse thread
Fine thread
Fine thread
da min
max
dw min
e min
h max
min
m min
mw min
s max=nominal size
min
per 1000 units ≈ kg
0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2 2.5
/ / / / / 1 1 1.5 1.5 1.5 1.5
/ / / / / / (1.25) (1.25) / / /
3 4 5 6 7 8 10 12 14 16 18
3.45 4.6 5.75 6.75 7.75 8.75 10.8 13 15.1 17.3 19.5
4.6 5.9 6.9 8.9 9.6 11.6 14.6 16.6 19.6 22.5 24.9
6.01 7.66 8.79 11.05 12.12 14.38 17.77 20.03 23.35 26.75 29.56
4.5 6 6.8 8 9 9.5 11.9 14.9 17 19.1 20.6
4.2 5.7 6.44 7.64 8.64 9.14 11.47 14.47 16.3 18.26 19.76
2.15 2.9 4.4 4.9 6.14 6.44 8.04 10.37 12.1 14.1 15.1
1.72 2.32 3.52 3.92 4.91 5.15 6.43 8.3 9.68 11.28 12.08
5.5 7 8 10 11 13 16 18 21 24 27
5.32 6.78 7.78 9.78 10.73 12.73 15.73 17.73 20.67 23.67 26.16
0.4 1.1 1.4 3.1 3.2 6 11.7 16.6 21 37.8 51.6
Thread Size
d
M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48
P Pitch Coarse thread
Fine thread
Fine thread
da min
max
dw min
e min
h max
min
m min
mw min
s max=nominal size
min
per 1000 units ≈ kg
2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
1.5 1.5 2 2 2 2 3 3 3 3 3
/ / / / / / / / / / /
20 22 24 27 30 33 36 39 42 45 48
21.6 23.7 25.9 29.1 32.4 35.6 38.9 42.1 45.4 48.6 51.8
27.7 31.4 33.2 38 42.7 46.6 51.1 55.9 59.9 64.7 69.4
32.95 37.29 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
22.8 24.5 27.1 31 32.6 35.5 38.9 42 45 48 50
21.5 23.2 25.8 29.4 31 33.9 37.3 40.4 43.4 46.4 48.4
16.9 18.1 20.2 22.5 24.3 27.4 29.4 31.8 34 36 38
13.52 14.48 16.16 18 19.44 21.92 23.52 25.44 27.2 28.8 30.4
30 34 36 41 46 50 55 60 65 70 75
29.16 33 35 40 45 49 53.8 58.8 63.1 68.1 73.1
68 86 127 182 273 296 380 505 630 814 995
