| Place of Origin: | China |
| Brand Name: | Yuetong |
| Certification: | 0350418Q30771R0S |
| Model Number: | DIN |
| Minimum Order Quantity: | 5000PCS |
|---|---|
| Price: | 0.1-0.2USD/PCS |
| Packaging Details: | 25kg/carton or bag on the pallet or as customer's requirement |
| Delivery Time: | 20-30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 TON per week |
| Diameter: | M8-M16 | Type: | J Type Ring Hook Sleeve Anchor Bolts |
|---|---|---|---|
| Material: | Carbon Steel | Standard: | DIN |
| Length: | 40-150MM | Grade: | Grade 4.8 |
| Finish: | Galvanized.yellow Zinc Plated | Packing: | Small Box /bulk Paced(25 Kg) |
| Sample: | Free Sample Can Be Sent For Test | Application: | Building Construction |
| High Light: | M8 sleeve anchor bolts,carbon steel sleeve anchor bolts |
||

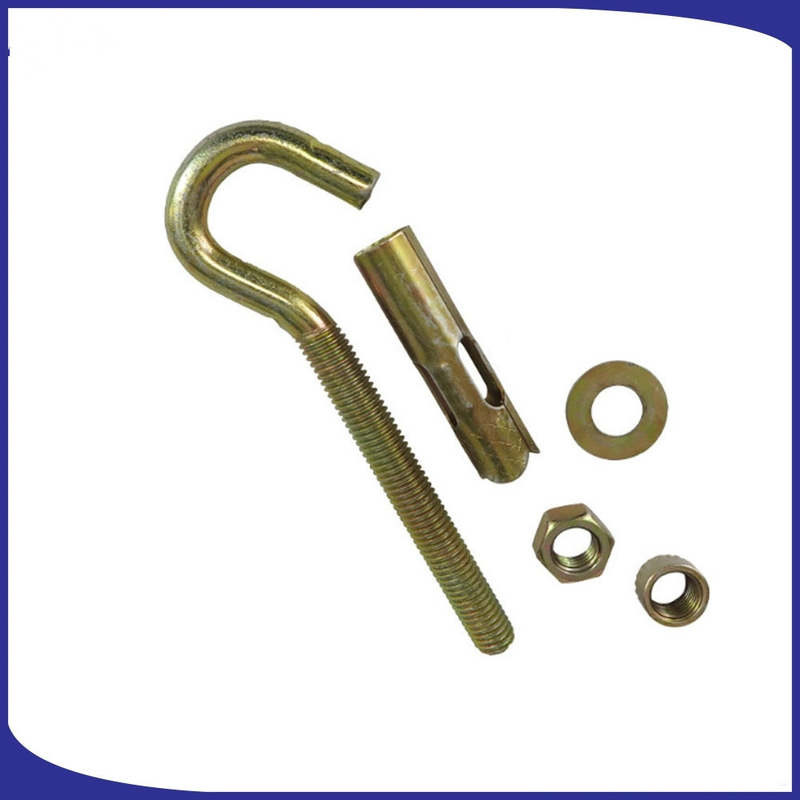

Zinc Plate carbon steel J type ring hook sleeve anchor bolts
Product Introduction:
Firstly, drill a hole by selecting an alloy electric hammer drill bit with the same diameter as the expansion screw iron pipe. Install it on the drill bit to drill the hole where it needs to be installed. The depth of the hole is slightly equal to the length of the bolt. After drilling the hole, clean the debris inside the hole, and then insert the expansion screw into the hole. Note that one end of the nut is on the outside, and the other end is inserted into the hole. Tighten the nut, and the iron pipe will slowly expand, thus providing a fixing effect. Usually, the iron pipe of the expansion bolt in the above diagram is 4mm thicker than the bolt, which means that the M6 bolt is drilled with a hole of m10, the M8 expansion bolt is drilled with a hole of m12, and so on.
When fixing an object, it is necessary to insert the expansion bolt into the hole and tighten the nut first, so that the iron sheet on the outside of the bolt is slightly tightened. When the expansion bolt is slightly fixed, unscrew the nut and flat washer, then align the object that needs to be fixed (usually fixed with holes) with the bolt and install it. Then, tighten the flat washer and washer in sequence, and finally fix it with the nut.
1. Good after-dales service, Any samall problems will be solved at the prompt time.
2. Many years of export experiences.
3. Specification list is avaliable upon your request.
4. Welcome to send requry, we will reply soon.
5. Prompt shipment with professional documents.
6. Custom packing with photo bafore shipment.
7. High quality and competitive price.
HEBEI YUETONG FASTENERS MANUFACTURING CO.,LTD is located in China's largest fasteners production base---Yongnian fasteners centre.
Our factory was founded in 1991.We have several sets of advanced equipments, adopt advanced modern management and use high quality steel to produce high quality products. The products sold throughout the domestic and exported to Southeast Asia and Europe and other countries and regions. Our products win good reputation with domestic and foreign customers.
Our factory mainly produces: all kinds of flat washers, spring washers, expansion screws, hex nuts, flange nuts, hex bolts, flange bolts, sleeve anchor, fundation bolts, and thread robs with DIN, BSW, ANIS,MS.And we also provide the OEM, Meanwhile, we are manufacturing factory, so we can give you the best quality and the good price.
1. Packing Details: Boxex on pallets; As customer's requirements.
2. Delivery Dtetails: 25 days after order.
Q: Are you trading company or manufacturer?
A: We are manufacturer and a trading company, which produces a portion by itself and a cooperative OEM factory produces a portion.
Q: How long is your delivery time?
A: Denerally it is 5-10days if the goods are in stock, or it is 15-25days if the goods need be produced, it is according to quantity you want.
Q: What is your terms of payment?
A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
